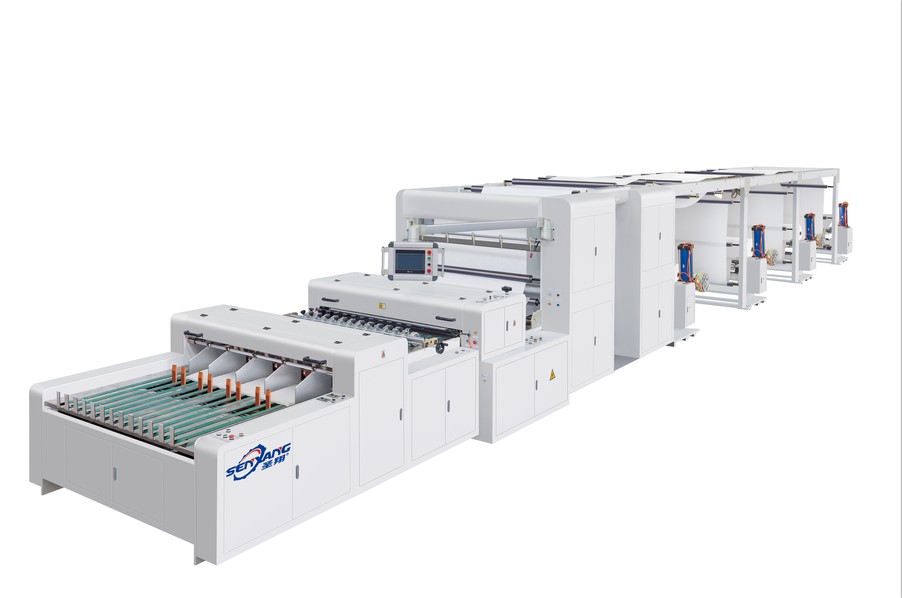

本機采用伺服電機PLC控制定長截切。傳動采用氣同步帶、制動
電機同步控制。電機變頻調速，自動計數，報警停車，磁粉張力
自動控制，可縱向多段分切，廢邊采用風機自動排除。采用自動
輸送帶裝置，可以直接輸送進入包裝機器，實現傳送打包一體。
This machine adopts servo motor PLC to control fixed-length cutting. The
drive adopts a synchronous belt of gas synchronous belt and brake motor.
Motor frequency conversion speed control, automatic counting, alarm stop,
magnetic powder tension automatic control, longitudinal multi-section
cutting, waste edge automatic elimination fan. The automatic conveyor belt
device can be directly transported into the packaging machine to realize the
integration of transmission and packaging.
主要技術參數 Main Technical Parameters:
| 型號 | Model | SX-HQJ-700H | SX-HQJ-1000H | | | |
| 原材料最大直徑 | Max diameter of material | Φ600mm | Φ600mm | | | |
| 最大截切寬度 | Max. width of cutting | 700mm | 1000mm | | | |
| 截切長度 | Length of cutting | 2020-1200mm | 20-1200mm | | | |
| 截切速度 | Cutting speed | 30-200times/min30-200g | 30-200times/min | | | |
| 材料厚度 | Material thickness | 30-200g | 30-200g | | | |
| 定長精度 | Cutting precision | ±0.2mm | ±0.2mm | | | |
| 整機功率 | Total power | 7kw | 8kw | | | |
| 重量 | Weight(approx.) | 3200kg | 3800kg | | | |
| 外形尺寸 | Overall dimension(L×W×H) | 6000×1600×2000mm | 6000×1900×2000mm |
