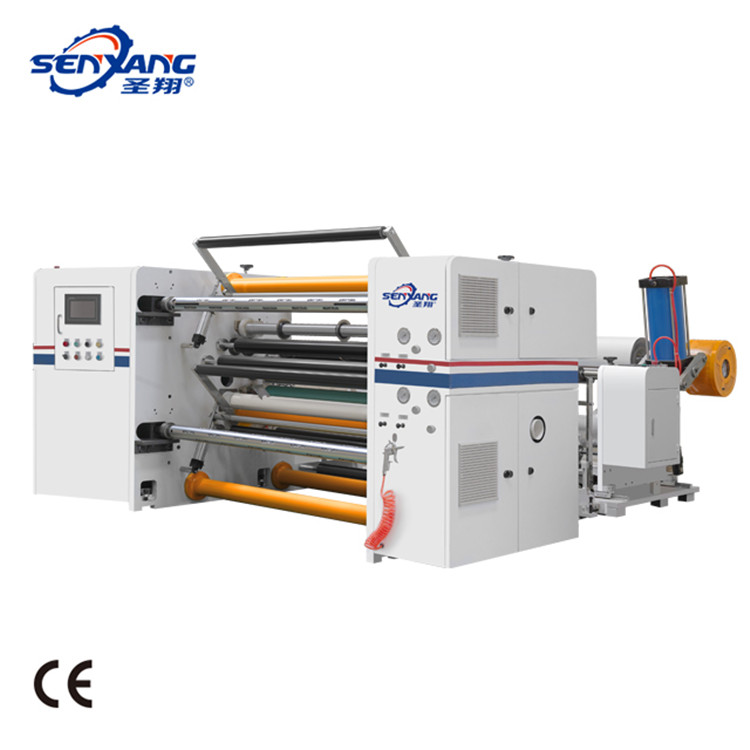

| 型號 | Model | SX-FQJ-1300D | SX-FQJ-1600D |
| 放卷最大寬度 | Max Width of unwinding | 1300mm | 1600mm |
| 放卷最大直徑 | Max diameter of unwinding | Φ1400mm | Φ1400mm |
| 分切最小寬度 | Max Width of slitting | 30mm | 30mm |
| 收卷最大直徑 | Max diameter of rewinding | Φ600mm | Φ600mm |
| 分切速度 | Speed of slitting | 30-400m/min | 30-400m/min |
| 整機功率 | Total Power | 10.5kw | 12.5kw |
| 適用電源 | Power supply | 380V/50hz | 380V/50hz |
| 機器重量 | Weight of machine | 3500kg | 4000kg |
| 主機外形尺寸 | Overall dimension(L×W×H ） | 3000×2000×1720mm | 3000×2800×1720mm |
