#include
#include
#include
#include
#include
#include
#include
#include
#include
#include
#include

inline size_t onWriteData(void *buffer, size_t size, size_t nmemb, void *userp)
{
    std::string *str = dynamic_cast((std::string *)userp);
    str->append((char *)buffer, size * nmemb);
    return nmemb;
}

std::string getFileBase64Content(const char *path, bool urlencoded = false)
{
    const std::string base64_chars =
        "ABCDEFGHIJKLMNOPQRSTUVWXYZ"
        "abcdefghijklmnopqrstuvwxyz"
        "0123456789+/";

    std::string ret;
    int i = 0;
    int j = 0;
    unsigned char char_array_3[3];
    unsigned char char_array_4[4];
    unsigned int bufferSize = 1024;
    unsigned char buffer[bufferSize];
    std::ifstream file_read;
    file_read.open(path, std::ios::binary);

    while (!file_read.eof())
    {
        file_read.read((char *)buffer, bufferSize * sizeof(char));
        int num = file_read.gcount();
        int m = 0;
        while (num--)
        {
            char_array_3[i++] = buffer[m++];
            if (i == 3)
            {
                char_array_4[0] = (char_array_3[0] & 0xfc) >> 2;
                char_array_4[1] = ((char_array_3[0] & 0x03) << 4) + ((char_array_3[1] & 0xf0) >> 4);
                char_array_4[2] = ((char_array_3[1] & 0x0f) << 2) + ((char_array_3[2] & 0xc0) >> 6);
                char_array_4[3] = char_array_3[2] & 0x3f;

                for (i = 0; (i < 4); i++)
                    ret += base64_chars[char_array_4[i]];
                i = 0;
            }
 }
           }

    file_read.close();

    if (i)
    {
        for (j = i; j < 3; j++)
            char_array_3[j] = '\0';

        char_array_4[0] = (char_array_3[0] & 0xfc) >> 2;
        char_array_4[1] = ((char_array_3[0] & 0x03) << 4) + ((char_array_3[1] & 0xf0) >> 4);
        char_array_4[2] = ((char_array_3[1] & 0x0f) << 2) + ((char_array_3[2] & 0xc0) >> 6);
        char_array_43[] = char_array_3[2] & 0x3f;

        for (j = 0; (j < i + 1); j++)
            ret += base64_chars[char_array_4[j]];

        while ((i++ < 3))
            ret += '=';
    }

    if (urlencoded)
        ret = curl_escape(ret.c_str(), ret.length());

    return ret;
}

std::string performCurlRequest(const char *pic_path, const std::string &token)
{
    std::string result;
    char *web_curl = nullptr;
    CURL *curl = curl_easy_init();
    CURLcode res;

    if (!asprintf(&web_curl, "https://aip.baidubce.com/rest/2.0/ocr/v1/license_plate?access_token=%s ", token.c_str()))
    {
        perror("asprintf error");
    }

    curl_easy_setopt(curl, CURLOPT_CUSTOMREQUEST, "POST");
    curl_easy_setopt(curl, CURLOPT_URL, web_curl);
    curl_easy_setopt(curl, CURLOPT_FOLLOWLOCATION, 1L);
    curl_easy_setopt(curl, CURLOPT_DEFAULT_PROTOCOL, "https");
    curl_easy_setopt(curl, CURLOPT_SSL_VERIFYPEER, 0L);
    curl_easy_setopt(curl, CURLOPT_SSL_VERIFYHOST, 0L);

    struct curl_slist *headers = NULL;
    headers = curl_slist_append(headers, "Content-Type: application/x-www-form-urlencoded");
    headers = curl_slist_append(headers, "Accept: application/json");
    curl_easy_setopt(curl, CURLOPT_HTTPHEADER, headers);

    std::string base64_image = getFileBase64Content(pic_path, true);
    std::string post_data = "image=" + base64_image + "&multi_detect=false&multi_scale=false";

    curl_easy_setopt(curl, CURLOPT_POSTFIELDS, post_data.c_str());
    curl_easy_setopt(curl, CURLOPT_WRITEDATA, &result);
    curl_easy_setopt(curl, CURLOPT_WRITEFUNCTION, onWriteData);

    curl_easy_setopt(curl, CURLOPT_SSL_VERIFYPEER, false);
    curl_easy_setopt(curl, CURLOPT_SSL_VERIFYHOST, 0L);

    if (curl_easy_perform(curl) != CURLE_OK)
        fprintf(stderr, "Curl request failed: %s\n", curl_easy_strerror(res));

    curl_easy_cleanup(curl);
    free(web_curl);

    return result;
}

int main(int argc, char *argv[])
{
    std::string access_token = "24.d69c300e601a1d2e3f735d916d45eb5a.2592000.1724636199.282335-99367601"; // 填自己的access_token
    std::string result;
    std::string car_number;

    result = performCurlRequest("/home/root/num/1.jpg", access_token); // 存放圖片的路徑
    std::string json = result;

    std::regex pattern("\"number\":\"(.*?)\"");
    std::smatch match;

    if (std::regex_search(json, match, pattern))
    {
        car_number = match[1].str();
        std::cout << "read car number is: " << car_number << std::endl;
    }

    return 0;
}

int main(int argc, char *argv[])
{
    QApplication a(argc, argv);
    Camera w;
    w.setWindowFlags(w.windowFlags() & ~Qt::WindowMaximizeButtonHint & ~Qt::WindowMinimizeButtonHint);
    w.showMaximized();
    w.show();
    return a.exec();
}

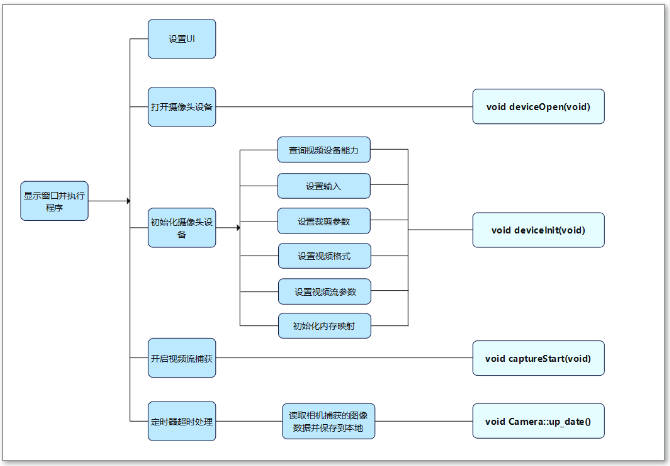

設置UI

ui->setupUi(this);
timer = new QTimer;

QDesktopWidget* desktopWidget = QApplication::desktop();
QRect screenRect = desktopWidget->screenGeometry();

qDebug("screen.width = %d , screen.height = %d", screenRect.width(), screenRect.height());

this->imageWidget = new ImageWidget(this);
this->imageWidget->setBackgroundRole(QPalette::Dark);
this->imageWidget->setSizePolicy(QSizePolicy::Ignored, QSizePolicy::Ignored);
this->imageWidget->setObjectName(QString::fromUtf8("imageWidget"));

if (screenRect.width() == 800)
{
    ui->pbt_start->setGeometry(60, 300, 70, 50);
    ui->pbt_stop->setGeometry(190, 300, 70, 50);
    this->imageWidget->setGeometry(QRect(5, 30, 350, 250));
}
else if (screenRect.width() > 800)
{
    ui->pbt_start->setGeometry(80, 400, 70, 70);
    ui->pbt_stop->setGeometry(260, 400, 70, 70);
    this->imageWidget->setGeometry(QRect(6, 37, 500, 330));
}

打開攝像頭設備

void deviceOpen(void)
{
    fd = open(deviceName, O_RDWR | O_NONBLOCK, 0);

    if (-1 == fd)
    {
        QMessageBox::about(NULL, "About", "camera open error");
        exit(EXIT_FAILURE);
    }
}

初始化攝像頭設備

void deviceInit(void)
{
    struct v4l2_capability cap;
    struct v4l2_cropcap cropcap;
    struct v4l2_crop crop;
    struct v4l2_format fmt;
    struct v4l2_streamparm sparm;
    unsigned int min;

    if (-1 == xioctl(fd, VIDIOC_QUERYCAP, &cap))
    {
        if (EINVAL == errno)
        {
            QMessageBox::about(NULL, "Information", "no V4L2 device");
            exit(EXIT_FAILURE);
        }
        else
        {
            errno_exit("VIDIOC_QUERYCAP");
        }
    }

    if (!(cap.capabilities & V4L2_CAP_VIDEO_CAPTURE))
    {
        QMessageBox::about(NULL, "Information", "no video capture device");
        exit(EXIT_FAILURE);
    }

    struct v4l2_input input;
    input.index = 0;
    if (ioctl(fd, VIDIOC_ENUMINPUT, &input) != 0)
    {
        QMessageBox::about(NULL, "Information", "set input error");
        exit(0);
    }

    if ((ioctl(fd, VIDIOC_S_INPUT, &input)) < 0)
    {
        QMessageBox::about(NULL, "Information", "set s_input error");
        exit(0);
    }

    CLEAR(cropcap);
    cropcap.type = V4L2_BUF_TYPE_VIDEO_CAPTURE;
    if (0 == xioctl(fd, VIDIOC_CROPCAP, &cropcap))
    {
        crop.type = V4L2_BUF_TYPE_VIDEO_CAPTURE;
        crop.c.top = 0;
        crop.c.left = 0;
        crop.c.height = 720;
        crop.c.width = 1280;
        if (-1 == xioctl(fd, VIDIOC_S_CROP, &crop))
        {
            switch (errno)
            {
                case EINVAL:
                    break;
                default:
                    break;
            }
        }
    }

    CLEAR(fmt);
    fmt.type = V4L2_BUF_TYPE_VIDEO_CAPTURE;
    fmt.fmt.pix.width = width;
    fmt.fmt.pix.height = height;
    fmt.fmt.pix.pixelformat = V4L2_PIX_FMT_YUYV;
    fmt.fmt.pix.field = V4L2_FIELD_ANY;

    if (-1 == xioctl(fd, VIDIOC_S_FMT, &fmt))
        errno_exit("VIDIOC_S_FMT");

    if (width != fmt.fmt.pix.width)
    {
        width = fmt.fmt.pix.width;
        // fprintf(stderr,"Image width set to %i by device %s.\n", width, deviceName);
    }

    if (height != fmt.fmt.pix.height)
    {
        height = fmt.fmt.pix.height;
        // fprintf(stderr,"Image height set to %i by device %s.\n", height, deviceName);
    }

    min = fmt.fmt.pix.width * 2;
    if (fmt.fmt.pix.bytesperline < min)
        fmt.fmt.pix.bytesperline = min;

    min = fmt.fmt.pix.bytesperline * fmt.fmt.pix.height;
    if (fmt.fmt.pix.sizeimage < min)
        fmt.fmt.pix.sizeimage = min;

    CLEAR(sparm);
    sparm.type = V4L2_BUF_TYPE_VIDEO_CAPTURE;
    sparm.parm.capture.capturemode = 0;
    sparm.parm.capture.timeperframe.numerator = 1;
    sparm.parm.capture.timeperframe.denominator = 30;

    if (xioctl(fd, VIDIOC_S_PARM, &sparm) < 0)
    {
        errno_exit("cam s parm");
        // exit(1);
    }

    mmapInit();
}

開啟視頻流捕獲

void captureStart(void)
{
    unsigned int i;
    enum v4l2_buf_type type;

    for (i = 0; i < n_buffers; ++i)
    {
        struct v4l2_buffer buf;

        CLEAR(buf);
        buf.type = V4L2_BUF_TYPE_VIDEO_CAPTURE;
        buf.memory = V4L2_MEMORY_MMAP;
        buf.index = i;

        if (-1 == xioctl(fd, VIDIOC_QBUF, &buf))
            errno_exit("VIDIOC_QBUF");
    }

    type = V4L2_BUF_TYPE_VIDEO_CAPTURE;

    if (-1 == xioctl(fd, VIDIOC_STREAMON, &type))
        errno_exit("VIDIOC_STREAMON");
}

超時處理

void Camera::up_date()
{
    unsigned char image_buf[921600 + 54];
    frameRead(image_buf);
    this->imageWidget->setPixmap(image_buf);
}

應用編譯及測試

編譯

elf@ubuntu:~/work/camera-demo$ . /opt/fsl-imx-x11/4.1.15-2.0.0/environment-setup-cortexa7hf-neon-poky-linux-gnueabi
elf@ubuntu:~/work/camera-demo$ qmake
elf@ubuntu:~/work/camera-demo$ make

拷貝camera-demo到ELF 1開發(fā)板的/home/root路徑下，運行測試

root@ELF1:~# cp /run/media/sda1/camera-demo ./
root@ELF1:~# chmod 777 camera-demo
root@ELF1:~# export DISPLAY=:0.0
root@ELF1:~# ./camera-demo

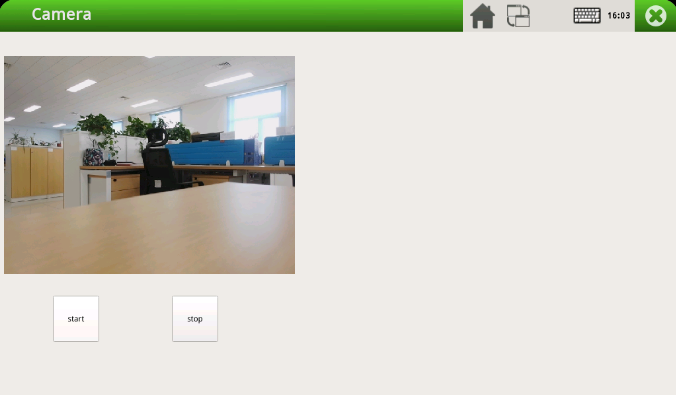

點擊start按鈕之后，使用ls num路徑下查看會有攝像頭拍攝的圖片。液晶屏上會實時預覽攝像頭拍到的圖像，如下圖所示：

在這里就可以和前面車牌識別結合起來了，比如攝像頭里面的畫面是一張車牌信息，通過截取攝像頭中的實時畫面到本地，然后上傳到百度智能云的后臺進行識別，至此就完成了通過攝像頭進行車牌識別的過程。

項目測試

root@ELF1:~# elf1_cmd_wifi.sh -i 8723 -s 賬號 -p 密碼

root@ELF1:~# ./camera-demo &
root@ELF1:~# ./demoCar

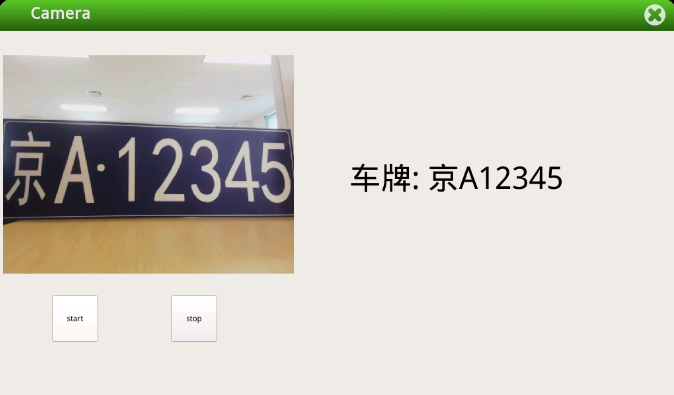

單擊“start”按鈕，識別結果如下圖所示
